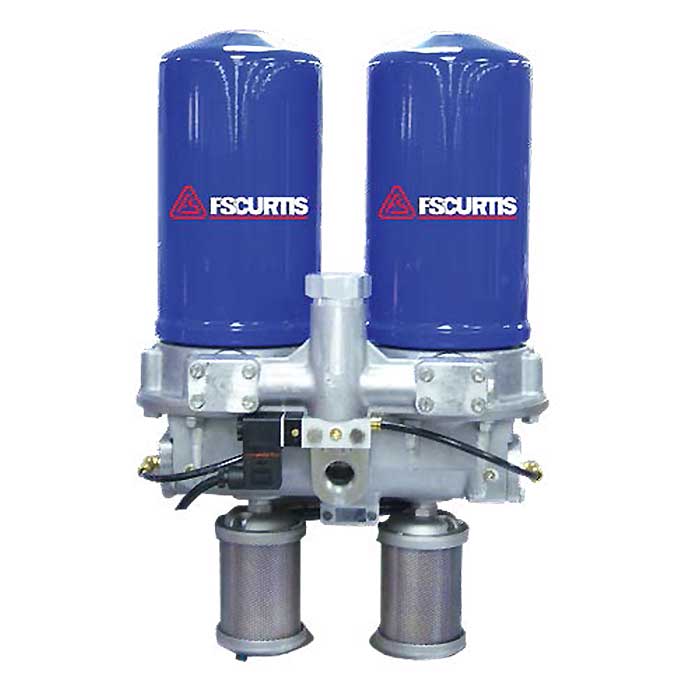

FS-CURTIS DA Series Click for Larger View

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Request A Quote!

DA Series 20-120 SCFM
Modular Desiccant Air Dryers

FS-Curtis’ DA Series provides bone dry air so your paint jobs come out perfect every time. When combined with pre-filtratiion and post-filtration, you have the ideal solution for eliminating air contaminants that cause issues with paint spraying, whether water or solvent borne. DA Series offers compressed air users a simple and effective nononsense approach to dry compressed air. Great for use with any type of compressor including piston, scroll, rotary vane or rotary screw technologies. The ability to function with inlet temperatures to 150°F makes it ideal for use with tank mounted reciprocating air compressors that lack an aftercooler.

Benefits & Features:
  • Easy installation (universal wall mounting brackets) in a compact and expandable system, wall or compressor mounted (Can be mounted on FS-Curtis compressors)
  • Alternative to a high inlet temperature refrigerated dryer
  • Environmentally friendly, using no refrigerant
  • Lowest operational and maintenance cost of any regenerative air dryer
  • Molecular sieve desiccant in easy spin-on canisters
  • Particulate afterfilter built into the canisters
  • Operates uninterrupted in dirty or dusty environments
  • 150°F maximum inlet temperature
  • Air cooled aftercooler not required

Models: DA-220E, DA-230E, DA-240E, DA-450ES, DA-460ES, DA-470ES, DA-480ES, DA-6100ESS, DA-6120ESS

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Modules Used
SCFM
Voltage
**RECOMMENDED
Coalescing Pre-filter
Weight
DA-220E
220E
20
115V
CF5-16-4DPL
47 Lbs.
DA-230E
230E
30
115V
CF5-16-4DPL
47 Lbs.
DA-240E
240E
40
115V
CF5-20-4-DPL
49 Lbs.
DA-450ES
230E, 220S
50
115V
CF5-24-6-DGL
95 Lbs.
DA-460ES
230E, 230S
60
115V
CF5-24-6-DGL
95 Lbs.
DA-470ES
240E, 230S
70
115V
CF5-24-6-DGL
97 Lbs.
DA-480ES
240E, 240S
80
115V
CF5-24-6-DGL
97 Lbs.
DA-6100ESS
240E, 230S, 230S
100
115V
CF5-24-8-DGL
120 Lbs.
DA-6120ESS
240E, 240S, 240S
120
115V
CF5-24-8-DGL
122 Lbs.
*Models DA-220E, 230E, 240E include mounting bracket | *Models DA-450ES, 460ES, 470ES, 480ES include mounting bracket, dual-module mounting strut & dual-manifold | *Models DA-6100ESS, 6120ESS include mounting bracket, tri-module mounting strut & tri-manifold | **Coalescing Prefilter with automatic drain is recommended for these standard dryer packages
DA Series Features:
  • • 150°F Max inlet temperature
  • • Long life, Twin canister design
  • • Wall mount requires no aftercooler
  • • 100 - 175 PSI operating range
  • • Cycles automatically
  • • Simple installation
  • • 115V switching timer with plug
  • • Expandable modular design
  • • Built-in afterfilter
  • • Not affected by high ambients.

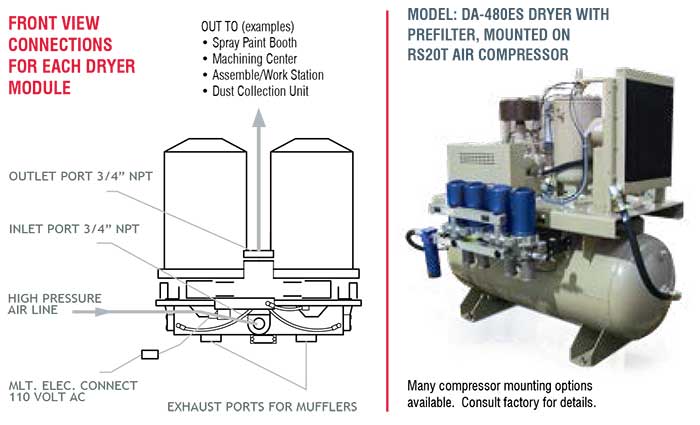

da series front connection view

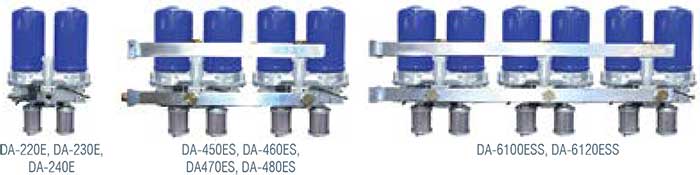

AS SIMPLE AS 1, 2, 3
Expandable design allows for an increasing air requirement by simply adding additional modular units. Simple installation!
DA Series Expandable

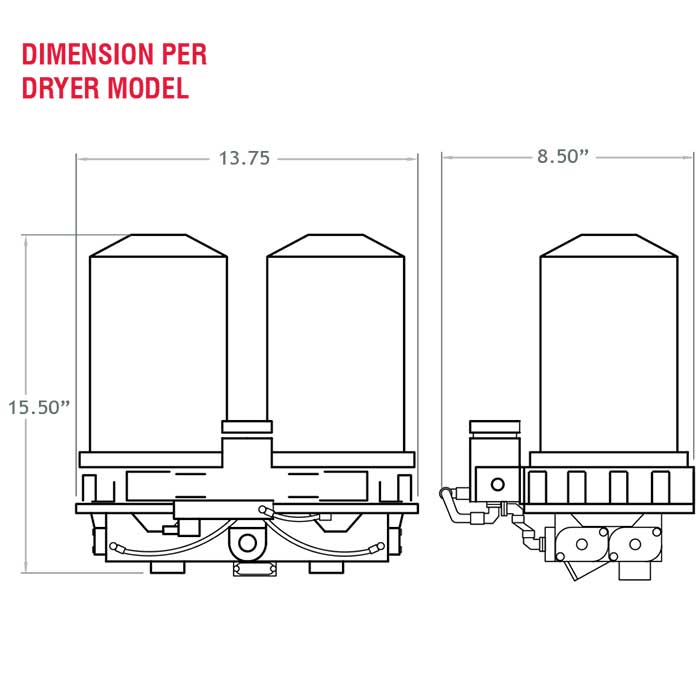

FS-CURTIS DA Series Dimensions

Options
  • F640223 - DA-220P Module with Pneumatic Controls
  • F640233 - DA-230P Module with Pneumatic Controls
  • F640243 - DA-240P Module with Pneumatic Controls

Accessories
  • F619704 - Desiccant cartridge kit – per module, includes 2
  • F619702 - Valve Service kit-2 check valves, 2 purge valves, 1 outlet check valve / per module
  • F619772 - Muffler
  • F619790 - 115V switch timer
  • F619925 - Air Control Valve
  • F619708 - Regeneration Valve Kit- (2) Valve Kit 20 SCFM
  • F619711 - Regeneration Valve Kit- (2) Valve Kit 30 SCFM
  • F619715 - Regeneration Valve Kit- (2) Valve Kit 40 SCFM
