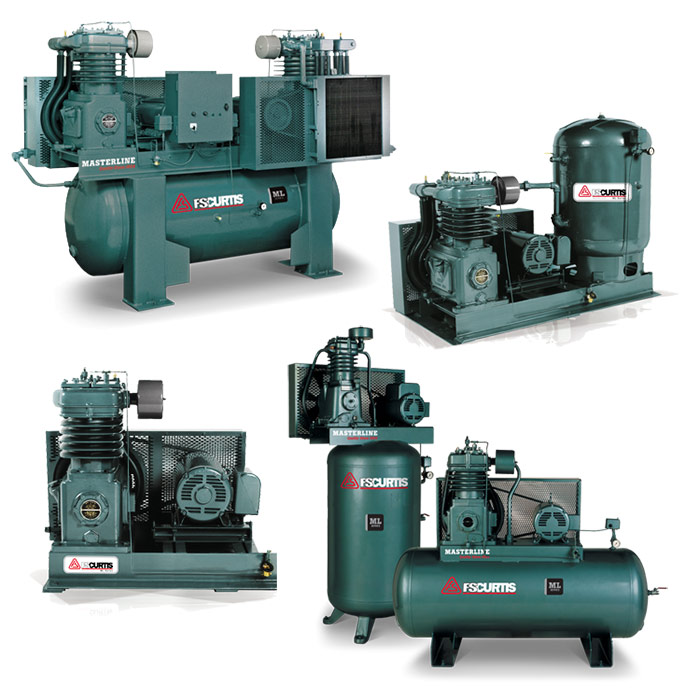

FS-CURTIS ML Series 5-30HP Click for Larger View

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Request A Quote!

ML Series 5-30HP

FS-CURTIS ML Series 5-30HP compressors delivers reliable performance in demanding applications. Since its inception in 1897, the Masterline has been the most robust, heavy-duty reciprocating air compressor lineup available. The perfect combination of quality components and efficient design make the ML Series rugged, affordable and smart. Because every model is built tough to last a lifetime in demanding working conditions, the ML Series is an outstanding alternative to splash-lubricated reciprocating compressors and small rotary compressors.

Benefits and Features:
  • CENTRO-RING PRESSURE LUBRICATION
  • 100% CAST-IRON CYLINDER HEADS, CONNECTING RODS, AND CRANKSHAFT
  • QUALITY COMPONENTS

Unlike rotary screw air compressors, ML Series models can run intermittently AND 100% continuous duty. They’re an ideal alternative to rotary screw air compressors in environments where a constant load isn’t needed. ML Series compressors can handle more rugged, hot or dirty ambient conditions that can put a rotary screw air compressor at risk of failure and expensive repairs.
Electric Models
Standard Package
Models: ML5, ML7.5, ML10, ML15, ML15+, ML20, ML20+, ML25, ML30
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
Pump
CFM
(@175psi)
Config
Tank
(gal.)
Dimensions
(LxWxH In.)
Weight
(LBS)
ML5
5
D96
19.1 Simplex
Horizontal
80
67x 26 x 51
600
ML5
5
D96
19.1 Simplex
Vertical
80
36 x 30 x 77
600
ML5
5
D96
38.2 Duplex
Horizontal
120
76 x 29 x 56
1025
ML7.5
7.5
C79
28.7 Simplex
Horizontal
80
67 x 26 x 49
650
ML7.5
7.5
C79
28.7 Simplex
Vertical
80
36 x 30 x 75
650
ML7.5
7.5
C79
57.4 Duplex
Horizontal
200
76 x 29 x 54
1200
ML10
10
D97
39.8 Simplex
Horizontal
120
74 x 33 x 59
1020
ML10
10
D97
79.6 Duplex
Horizontal
200
88 x 32 x 64
1800
ML15
15
D97
49.5 Simplex
Horizontal
120
74 x 33 x 59
1150
ML15+
15
C89
55.8 Simplex
Horizontal
120
74 x 33 x 57
1150
ML15+
15
C89
111.6 Duplex
Horizontal
200
88 x 36 x 64
2000
ML20
20
C89
65.1 Simplex
Horizontal
120
73 x 33 x 58
1125
ML20+
20
C98
79.3 Simplex
Horizontal
200
78 x 43 x 76
2050
ML20+
20
C98
158.6 Duplex
Horizontal
240
95 x 46 x 73
3650
ML25
25
C98
82.4 Simplex
Horizontal
200
78 x 43 x 76
2150
ML25
25
C98
164.8 Duplex
Horizontal
240
95 x 46 x 73
3750
ML30
30
C98
102.2 Simplex
Horizontal
200
78 x 43 x 76
2350
ML30
30
C98
204.4 Duplex
Horizontal
240
95 x 46 x 73
3850

Ultrapack
Models: ML5, ML7.5, ML10, ML15, ML15+, ML20, ML20+, ML25, ML30
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
Pump
CFM
(@175psi)
Config
Tank
(gal.)
Dimensions
(LxWxH In.)
Weight
(LBS)
ML5
5
D96
19.1 Simplex
Horizontal
80
67 x 29 x 52
650
ML5
5
D96
19.1 Simplex
Vertical
80
39 x 32 x 78
650
ML5
5
D96
38.2 Duplex
Horizontal
120
83 x 31 x 57
1095
ML7.5
7.5
C79
28.7 Simplex
Horizontal
80
67 x 29 x 50
700
ML7.5
7.5
C79
28.7 Simplex
Vertical
80
39 x 31 x 76
700
ML7.5
7.5
C79
57.4 Duplex
Horizontal
200
82 x 31 x 55
1300
ML10
10
D97
39.8 Simplex
Horizontal
120
74 x 36 x 57
1050
ML10
10
D97
79.6 Duplex
Horizontal
200
90 x 37 x 64
1950
ML15
15
D97
49.5 Simplex
Horizontal
120
74 x 36 x 59
1250
ML15+
15
C89
55.8 Simplex
Horizontal
120
74 x 36 x 57
1250
ML15+
15
C89
111.6 Duplex
Horizontal
200
89 x 40 x 64
2150
ML20+
20
C98
158.6 Duplex
Horizontal
240
105 x 53 x 73
3800
ML25
25
C98
164.8 Duplex
Horizontal
240
105 x 53 x 74
3900
ML30
30
C98
204.4 Duplex
Horizontal
240
105 x 53 x 74
4075

   Click Here For Maintenance Kits


*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Maintenance Kits
for Model
Part
Number
Description
ML Basic Pumps
FMLD96
D96 Model
3-5 HP 190 Lbs.
ML Basic Pumps
FMLD96
D96 Model
3-5 HP 190 Lbs.
ML Basic Pumps
FMLC79
C79 Model
7.5 HP 200 Lbs.
ML Basic Pumps
FMLC89
C89 Model
15-20 HP 480 Lbs.
ML Basic Pumps
FMLC98
C98 Model
20-30 HP 880 Lbs.
ML Series
FSK-D9610SK
Pump Model D96
Maintenance Kits
ML Series
FSK-C7910SK
Pump Model C79
Maintenance Kits
ML Series
FSK-D9710SK
Pump Model D97
Maintenance Kits
ML Series
FSK-C8910SK
Pump Model C89
Maintenance Kits
ML Series
FSK-C9810SK
Pump Model C98
Maintenance Kits

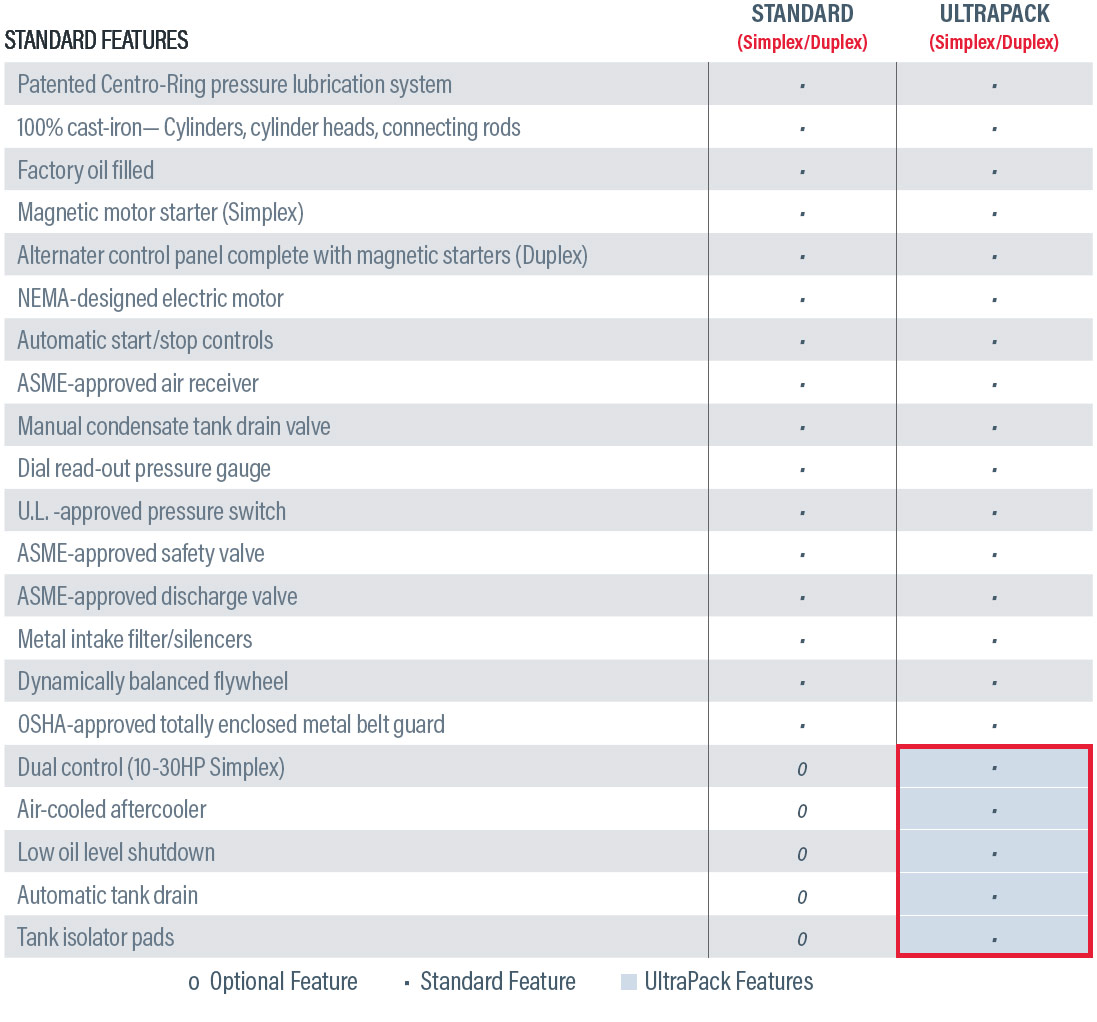

FS-CURTIS CA Series Features
CENTRO-RING PRESSURE LUBRICATION
Patented FS-Curtis design.
• Proprietary technology is an FS-Curtis exclusive
• Supplies pressurized oil internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods
• Helps ensure maximum uptime and increase service life

100% CAST-IRON CYLINDERS, CYLINDER HEADS, CONNECTING RODS, AND CRANKSHAFT
All cast-iron where it counts for longer life with less maintenance. • Some pumps claim 100% cast-iron yet still have aluminum cylinders, cylinder heads, connecting rods and crankshafts — not FS-Curtis
• Ductile cast-iron crankshaft and connecting rods are stronger, more corrosion-resistant and less likely to break
• Slow-turning pump increases pump life
• Rugged parts and construction for industrial performance

QUALITY COMPONENTS
Built for durablility and reliability.
• Industry-leading stainless-steel valve assemblies for increased airflow and reliability
• Oversized tapered main roller bearings to ensure long life
• Premium finned intercooler maximizes heat dissipation
• Metal intake filter housing is superior to plastic
• Heavy-duty stamped-steel belt guard
• Suction valve head unloaders for continuous running air compressors

SIMPLEX Simplex compressors are well suited for common applications where only one compressor is needed. • Magnetic motor starter • Manual tank drain • Oil sight glass • Horizontal or vertical tank configurations available • Factory oil filled DUPLEX Duplex compressors are ideal when there are varying demand levels during operation. By alternating demand across two pumps, a duplex compressor also delivers longer pump life. The redundant pumps ensure you’ll always have air, eliminating maintenance downtime. • Alternator control panel comes mounted with magnetic motor starters and thermal overload protection • Compressors alternate during normal operation • Both compressors run when system demands it • Duplex design reduces electrical cost and eliminates downtime • Factory oil filled

Call mdi for all available options.

ULTRAPACK
The ultimate value, an FS-Curtis UltraPack gives you a Masterline Simplex or Duplex compressor fully packaged with the most common options and accessories. You’ll save money and time by getting it all in one package, and you’ll be assured of increasing air quality while reducing maintenance needs. Industry-leading five year UltraShield warranty available — talk to your FS-Curtis representative for more details.
• Air-cooled aftercooler
• Magnetic motor starter (Simplex)
• Alternator panel (Duplex)
• Dual control (10-30HP Simplex)
• Low oil level shutdown
• Automatic tank drain
• Tank isolator pads
• Factory oil filled
