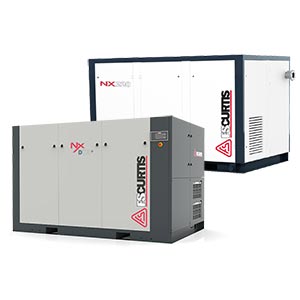

FS-CURTIS NX 110-260kW Click for Larger View

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Request A Quote!

Nx Series 150-350HP / 110-260kW
Direct Drive and Variable Speed

The FS-Curtis NxD and NxV 110-260kW Series air compressors are valued worldwide for their legendary reliability and industrial performance. The standard iCommand-Touch controller revolutionizes compressor operations by tracking temperature, pressure, and logging critical historic data. Power efficiency is maximized with FS-Curtis’ exclusive airend profile, centrifugal fan, and generously sized components – making the Nx Series ideal for large industrial manufacturing and power generation.
Benefits & Features:
  • eCOOL® Technology
  • dBA Shield Noise Reduction
  • Energy Efficiency & Quality Components
  • Premium Efficiency TEFC (IP55 Class F) motor
  • Ease of Maintenance

Direct Base Mounted Models: NxD110, NxD160, NxD185, NxD220, NxD260
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Capacity
FAD (CFM)
Motor
Dimensions
(base mount)
Weight
(base mount)
100 psi
125 psi
150 psi
175 psi
kW/ HP
(L x W x H In.)
Lbs.
NxD110
691
622
573
537
110/150
107.9 x 67.3 x 68
6613
NxD160
1038
938
826
760
160/200
114.2 x 73.2 x 76.6
8157
NxD185
1103
1026
927
815
185/250
114.2 x 73.2 x 76.6
8267
NxD220
1455
1356
1222
1137
220/300
114.2 x 73.2 x 76.6
8157
NxD260
1642
1543
1398
1300
260/350
114.2 x 73.2 x 76.6
8267

Variable Speed Models: NxV110, NxV160, NxV185
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Capacity
FAD (CFM)
Motor
Dimensions
(base mount)
Weight
(base mount)
100 psi
125 psi
150 psi
kW/ HP
(L x W x H In.)
Lbs.
NxV110
688.5 - 205.4
624.1 - 200.0
574.0 - 175.0
110/150
107.9 x 67.3 x 68
6613
NxV160
1030.0 - 340.0
965.0 - 333.0
838.0 - 333.0
160/215
114.2 x 73.2 x 76.6
8157
NxV185
1104.0 - 352.0
1031.3 - 358.0
929.0 - 349.0
185/250
114.2 x 73.2 x 76.6
8267


   Click Here For Maintenance Kits


*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Maintenance Kits
for Model
Part
Number
Description
NxD110
FSK-26NX110
2000/6000 Hour Service Kit
(Air filter element + oil-filter + oil sample kit)
NxD110
FSK-4NX110
4000 Hour Service Kit
(Air filter element + oil-filter + air/oil separator + oil sample kit)
NxD110
FSK-8NX110
8000 Hour Maintenance Kit
(4000 hour kit + inlet vlv. kit + thermo-vlv kit + min. pres. vlv. kit + enclosure filters)
NxD110
FSC-8000-5
5 Gallon Pail - FSC-Max Fluid Lubricant
(Not contained in kits)
NxD160 & NxD185
FSK-26NX160185
2000/6000 Hour Service Kit
(Air filter element + oil-filter + oil sample kit)
NxD160 & NxD185
FSK-4NX160185
4000 Hour Service Kit
(Air filter element + oil-filter + air/oil separator + oil sample kit)
NxD160 & NxD185
FSK-8NX160185
8000 Hour Maintenance Kit
(4000 hour kit + inlet vlv. kit + thermo-vlv kit + min. pres. vlv. kit + enclosure filters)
NxD160 & NxD185
FSC-8000-5
5 Gallon Pail - FSC-Max Fluid Lubricant
(Not contained in kits)
NxV110
FSK-26NX110
2000/6000 Hour Service Kit
(Air filter element + oil-filter + oil sample kit)
NxV110
FSK-4NX110
4000 Hour Service Kit
(Air filter element + oil-filter + air/oil separator + oil sample kit)
NxV110
FSK-8NX110
8000 Hour Maintenance Kit
(4000 hour kit + inlet vlv. kit + thermo-vlv kit + min. pres. vlv. kit + enclosure filters)
NxV110
FSC-8000-5
5 Gallon Pail - FSC-Max Fluid Lubricant
(Not contained in kits)
NxV160 & NxV185
FSK-26NX160185
2000/6000 Hour Service Kit
(Air filter element + oil-filter + oil sample kit)
NxV160 & NxV185
FSK-4NX160185
4000 Hour Service Kit
(Air filter element + oil-filter + air/oil separator + oil sample kit)
NxV160 & NxV185
FSK-8NX160185
8000 Hour Maintenance Kit
(4000 hour kit + inlet vlv. kit + thermo-vlv kit + min. pres. vlv. kit + enclosure filters)
NxV160 & NxV185
FSC-8000-5
5 Gallon Pail - FSC-Max Fluid Lubricant
(Not contained in kits)
ICOMMAND CONTROLLER iCommand Controller
With the optional iCommand-Touch, a full-color screen displays graphs which capture and track factual, real-time air usage by the hour, day, week and month. Historical data can be retrieved at any time at the touch of the screen. Data trending keeps your finger on the pulse of your entire compressed air system. Continuously tracks pressure, temperature, air quantity and usage to easily diagnose and optimize your plant’s air system.
• Simple Touchscreen Control
• Intuitive Navigation
• Capture Real-time and Historical Data Trending
• Precisely delivers compressed air to usage


ICOMMAND CONTROLLER
eCOOL® TECHNOLOGY
eCOOL® Technology
Compressors generate heat. FS-Curtis’ exclusive eCOOL technology provides protection from heat and reduces thermal stress.

By combining smart compressor layout with intelligent component selection, eCOOL technology maximizes cooling airflow for greater energy efficiency, improved reliability and increases service life up to 50% longer for motors and electrical components and up to 30-50% longer for bearings, hoses and seals.
eCOOL® TECHNOLOGY Flow

dBA Shield Noise Reduction
Designed for quiet operation.
• Extra-thick sound insulation reduces noise
• Can be installed in applications where a quiet setting is important
• Laminated oil-proof sound insulation

Energy Efficiency & Quality Components
Built to the highest levels of dependability and reliability.
• Premium Efficiency TEFC (IP55 Class F) motor protects compressor from harsh environment
• IE3 Motors increase efficiency
• NEMA-1 electric panel
• Wye-Delta motor starter
• Hi-Efficiency air/oil separator with 1-3 ppm carryover
• 120 volt control voltage
• 100% continuous duty cycle, pulsation free air
• Energy efficient oversized cooler
• Built-in heavy duty air intake filter
• Durable powder-coat painted enclosure
• Leak-free design with o-ring seal fittings & hoses
• Variable Speed Drive optional

Ease of Maintenance
Designed for low cost of ownership and easy service.
• Easy access to all preventative maintenance components
• Washable cabinet pre-filter
• Controller alerts for maintenance intervals
• Differential pressure indicators for the oil filters, air filter & separator element
• Pivoting separator tank lid allows for easy element change out (75/90kW)
NXGEN WARRANTY
Extended Warranty Program
All Nx products are backed by an industry leading warranty:

• Five-year major components warranty
• Ten-year airend warranty
Just register the machine online, Use only FS-Curtis Genuine Parts & Lubricants per the required maintenance schedule, and you will have peace of mind knowing that your machine is backed by the NxGEN Warranty
NXGEN WARRANTY


Options
Factory filled with Food Grade Oil

Accessories
Zero air loss condensate drain 115V
Moisture Separator
