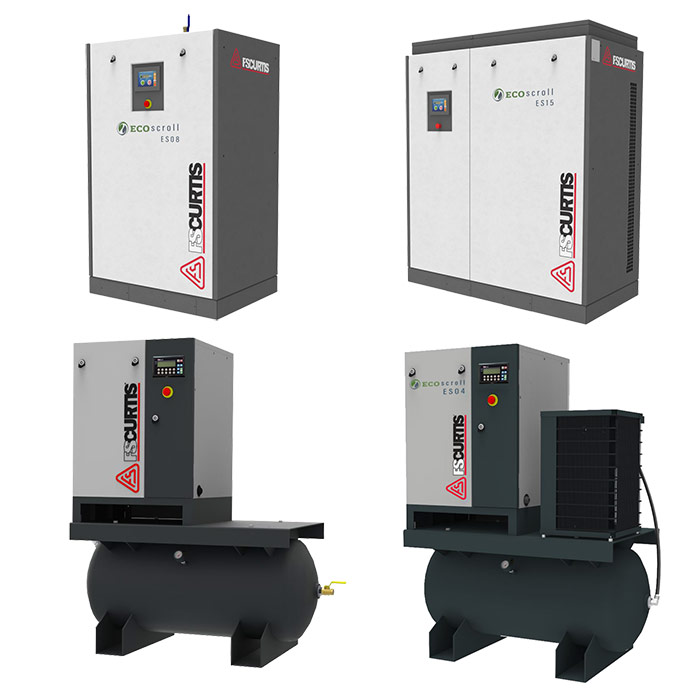

FS-CURTIS Eco-Scroll 4-15Kw Click for Larger View

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Request A Quote!

ECO Series 4-15kW
ECO-Scroll Oil-Free Air Compressors

FS-Curtis ECO Scroll oil-free air compressors are ISO 8573-1 CLASS 0 certified compressors which are energy efficient, easy to operate and maintain, quiet and compact. FS-Curtis ECO Scroll oil-free scroll compressors provide 100% oil-free air for critical applications in industries such as electronics, pharmaceutical, hospitals, printing, automotive, universities, dental applications, water aeration, food and beverage.
Benefits & Features:
  • Delivers ISO 8573-1 Class 0 clean & efficient compressed air
  • No oil contamination
  • Lower carbon footprint with environmentally friendly ISO 8573-1 Class 0 Air
  • Less moving parts results in higher reliability
  • Ultra low vibration (5mm/s or less)
  • Powered by high efficient motor TEFC IE3

Tank Mounted and Base Mounted Available
Models: ES04, ES08, ES11, ES15

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Capacity (CFM)
116 psi
Motor
Kw / HP
Sound Level
dBA
Dimensions (base mounted)
(L x W x H In.)
Weight (base mounted)
Lbs.
ES04
14.5
4 / 5
57
52¼ x 24 x 35¼
331
ES08
29.0
8 / 10
59
40 x 29½ x 65
660
ES11
42.4
12 / 15
61
63 x 29½ x 68½
990
ES15
56.5
15 / 20
63
63 x 29½ x 68½
1210

Many customers are opting for rotary screw compressors based on their need for low oil-carryover, low sound, and continuous-duty operation, but scroll compressors perform as well or better than rotary screws in all these areas.

In addition, scrolls are not as sensitive to intermittent operation or short-cycling, and are therefore, less risky if you are unsure about your air demand.

Although scrolls typically cost a little more up-front, a scroll can quickly pay for itself purely based on lower maintenance spend.

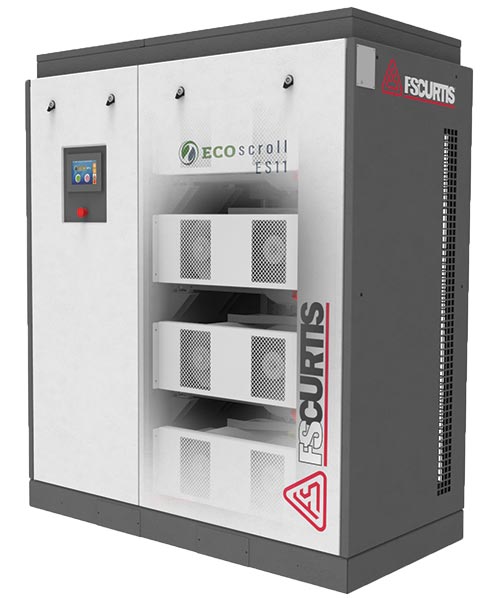

FS-CURTIS Eco-Scroll Cutaway
Clean, Oil-free Air
High quality air where oil-free air is critical.
• Delivers ISO 8573-1 Class 0 clean & efficient compressed air
• No oil contamination

Ecologically Conscious
Smart & environmentally conscious design.
• Lower carbon footprint with environmentally friendly ISO 8573-1 Class 0 Air
• Unit installation in work space gives you reduced installation costs
• Promotes energy conservation by avoiding the use of oil
• Maintenance friendly
• Less moving parts results in higher reliability
• Small footprint, space saving modular design
• Easy to use electronic controller

Whisper Quiet
Designed for quieter operation.
• Designed to be installed in applications where quiet setting is important
• Noise level between 57 and 63 dBA
• No inlet valve knocking noise
• Ultra low vibration (5mm/s or less)

Smart user-friendly controller
User-friendly control interface with an easy-to-read display.
• Informative menus allows user to program maintenance alerts for consumables
• Warning/alarm and shutdown gives you multiple protections against damaging implications
• Real-time pressure and temperature reading for real time status monitoring
• Simple and easy to operate, much like a reciprocating compressor
• Password protected parameters keeps system protected
• Full color touch screen with multi unit sequencing (ES08-15)
• Maintenance page illustrations allow for easy fault checks and maintenance warnings(ES08-15)

Powerful & Energy Efficient
Built to the highest levels of dependability, reliability & efficiency.
• Powered by high efficient motor TEFC IE3
• Exclusive ECO-Series scroll airend
• Fixed and orbital scrolls are precisely meshed
• Centrifugal cooling fan keeps heat exchange efficient and quiet
• Check valves and safety relief valves in line to prevent back pressure to the airend
• 100% duty cycle
• Units are start/stop controlled
• Can be oversized without harm to scroll airend
• Cascade-style sequencing of airends with ability to reduce or increase power consumption to match demand.



Options
60, 80 & 120 Gal Tank
Power Supply Options: 1/60/230V, 3/60/230V or 3/60/460V
UltraPack, Dryer, Pre-filter

Accessories
Zero air loss condensate drain 115V
